How To Use Black Magic
Build Plate Specific Guidance
-
Textured PEI
The surface texture mechanically breaks surface tension as you apply, so the adhesive self-levels naturally. USE A THIN COAT worked into the surface and finish spreading before it starts to dry. This is the easiest application scenario.
-
Smooth PEI
Don't use too much. THIN COATS!
Many PEi plates will go on very easy and smooth out on their own. however some Smooth PEI is mildly hydrophobic and our adhesive's higher surface tension means it will pull and streak on the first pass rather than self-level. This is normal. Apply enough for even coverage and keep working the surface with the foam as it dries. The carrier evaporates as you work and the film will level out on its own. If it pools it's ok to keep working it smooth. Takes about thirty extra seconds once you know the technique.
-

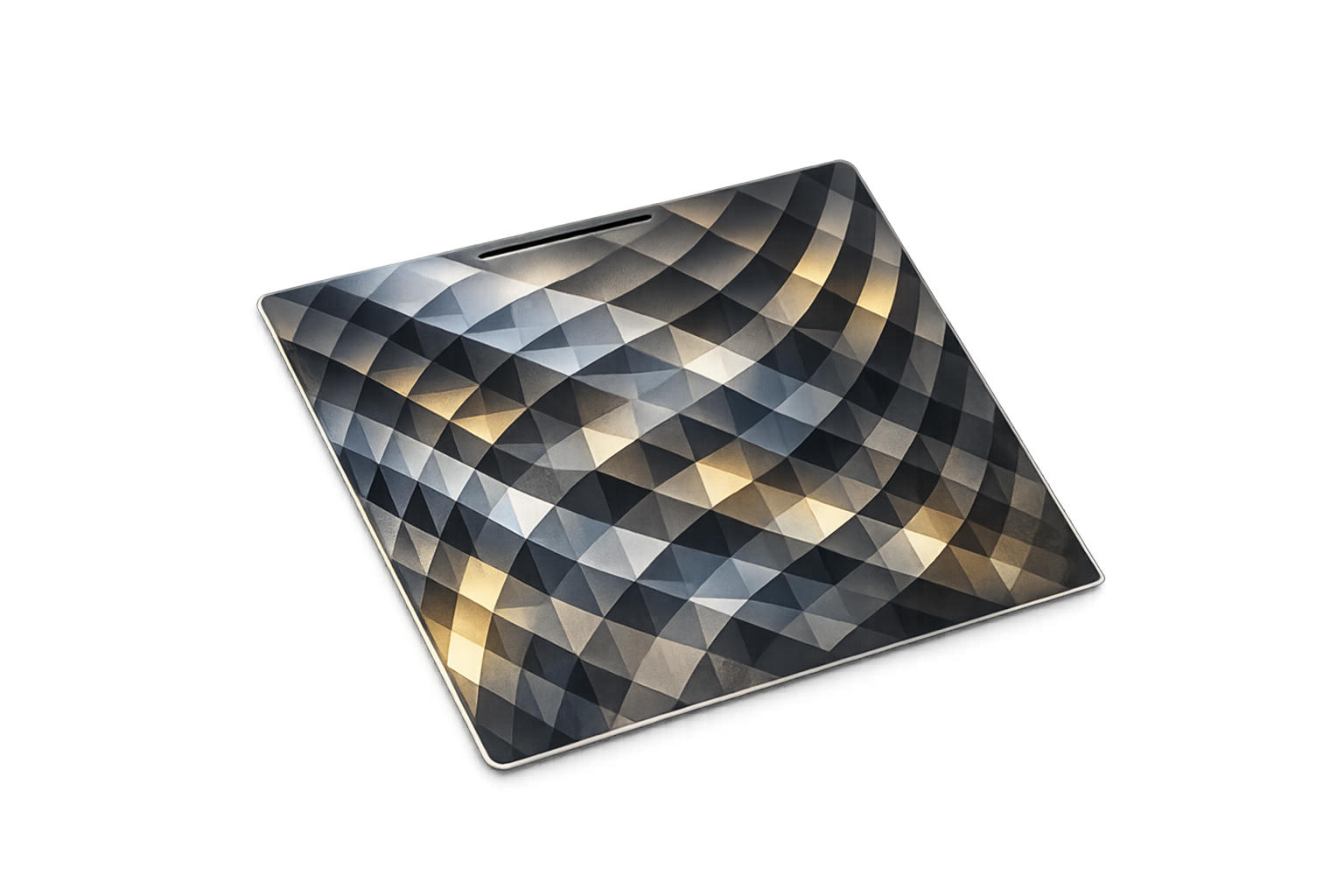

3D Effect Plates
Use a VERY THIN COAT worked into the surface as it dries. Like textured PEI, the surface detail breaks surface tension and the adhesive self-levels naturally. However too much adhesive will fill the texture detail and reduce the effect on your print surface. It's ok to do it in sections. Clean the build plate and reapply after each print.
-

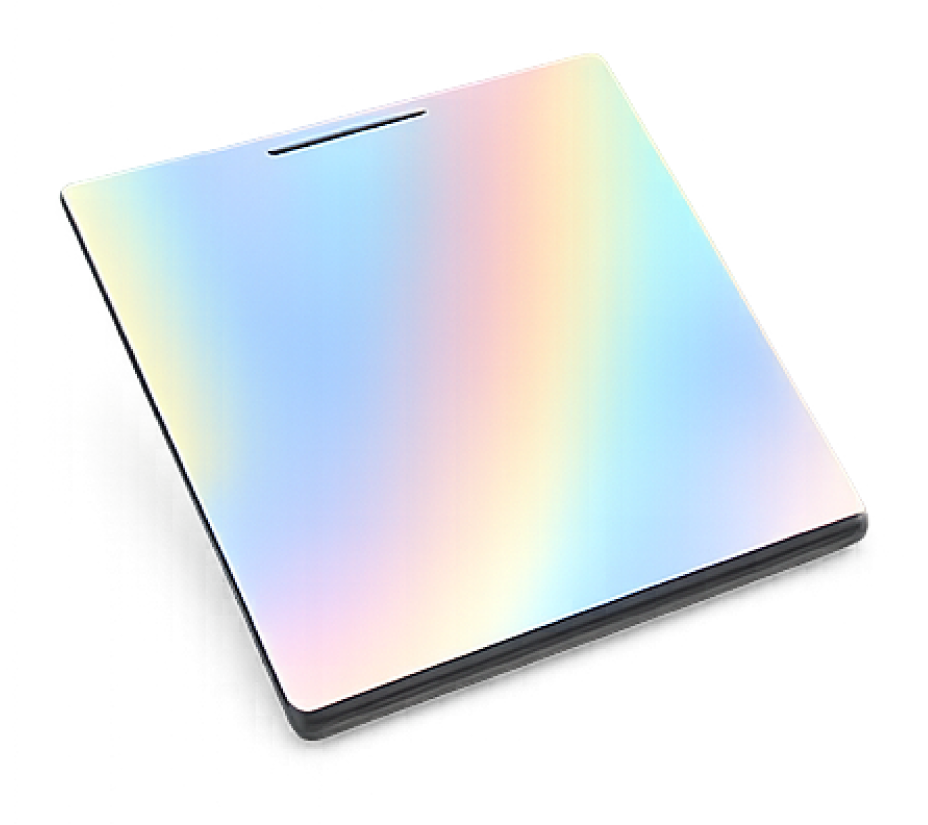

Holographic
Not recommended for highly smooth holographic plates with very fine colorful textures. The adhesive will work, but the holographic effect may transfer into the adhesive layer on your print. These plates are designed to be used without adhesive.
One technique users have reported success with is thoroughly cleaning the plate, applying adhesive, then running a full-bed leveling or “cleaning” print. The adhesive that lifts with the print can help remove some surface contaminants. -

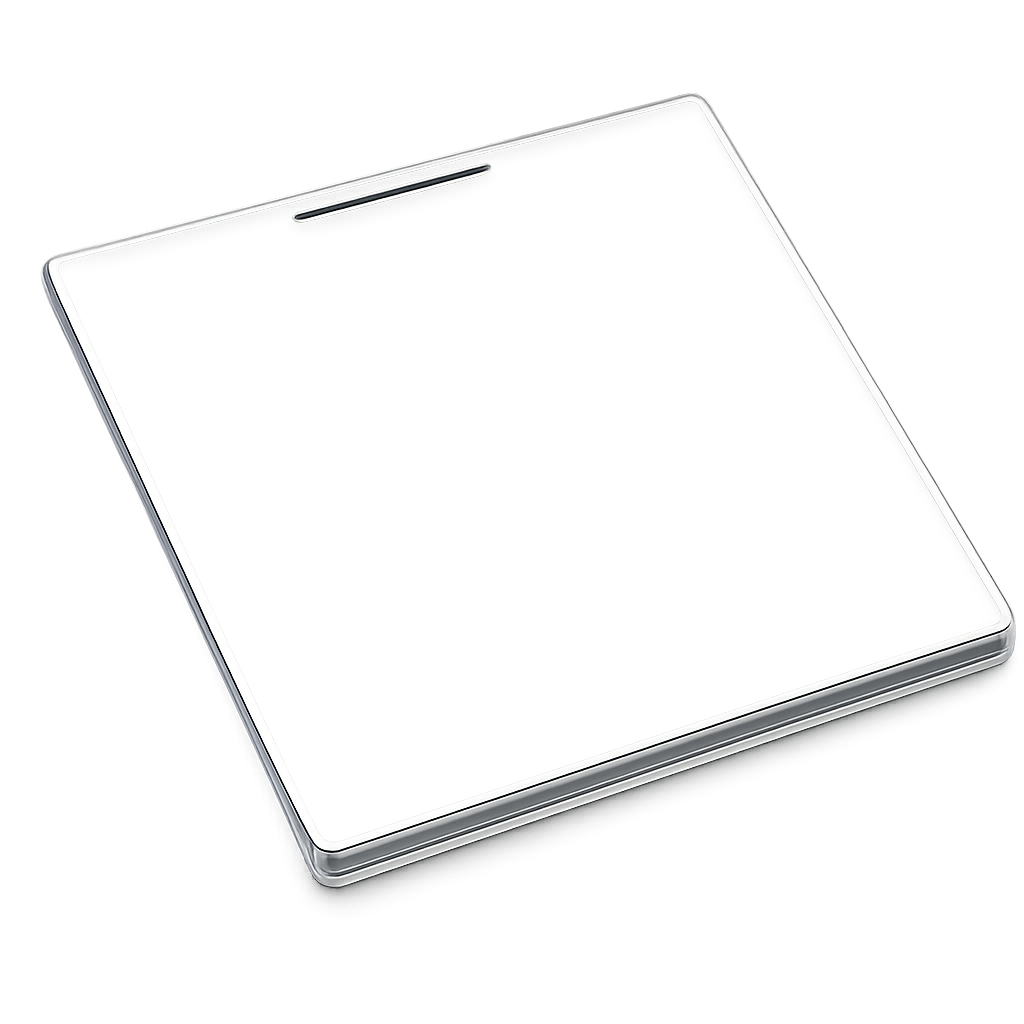

Glass Plates
We have tested on glass plates with success in limited situations but have not done extensive testing. Share your experience and we'll update here
-
Super Tack Cool Plates
Black Magic Adhesvies in not compatible with Super Tak cool plates. These plates have a surface treatment that is damaged by the IPA in our formulations.
These Plates work great until they dont, which is why we prefer adhesive on more durable build plate surfaces. -
Other Plates
Have you tried our adhesive on a different kind of plate? A different Use case. Please tell us.
Example: We've gotten some reports of people using it in resin printers to help with release.
Filament specific guidance
-
PLA / PETG
Use a single thin coat and a plate temp >60 °C
-
ABS / ASA
Use a single coat. A second coat will increase hold but make release more difficult. bed temp ≥100°C is ideal.
-
PC / Nylon
Apply two coats allowing the adhesive to dry between coats. Heated chamber and bed temp ≥110 °C is recommended
-
TPU
Apply one to two thin coats to aid in Release. It’s OK to remove the print when the plate is warm.
-
Polypropylene (PP)
Black Magic Adhesives is not recommended with Polypropylene
